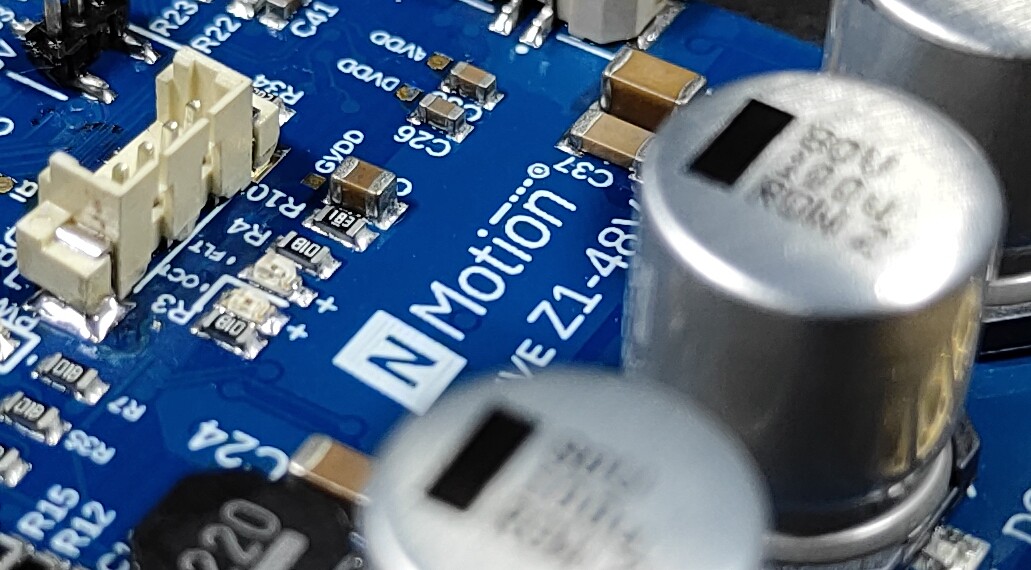

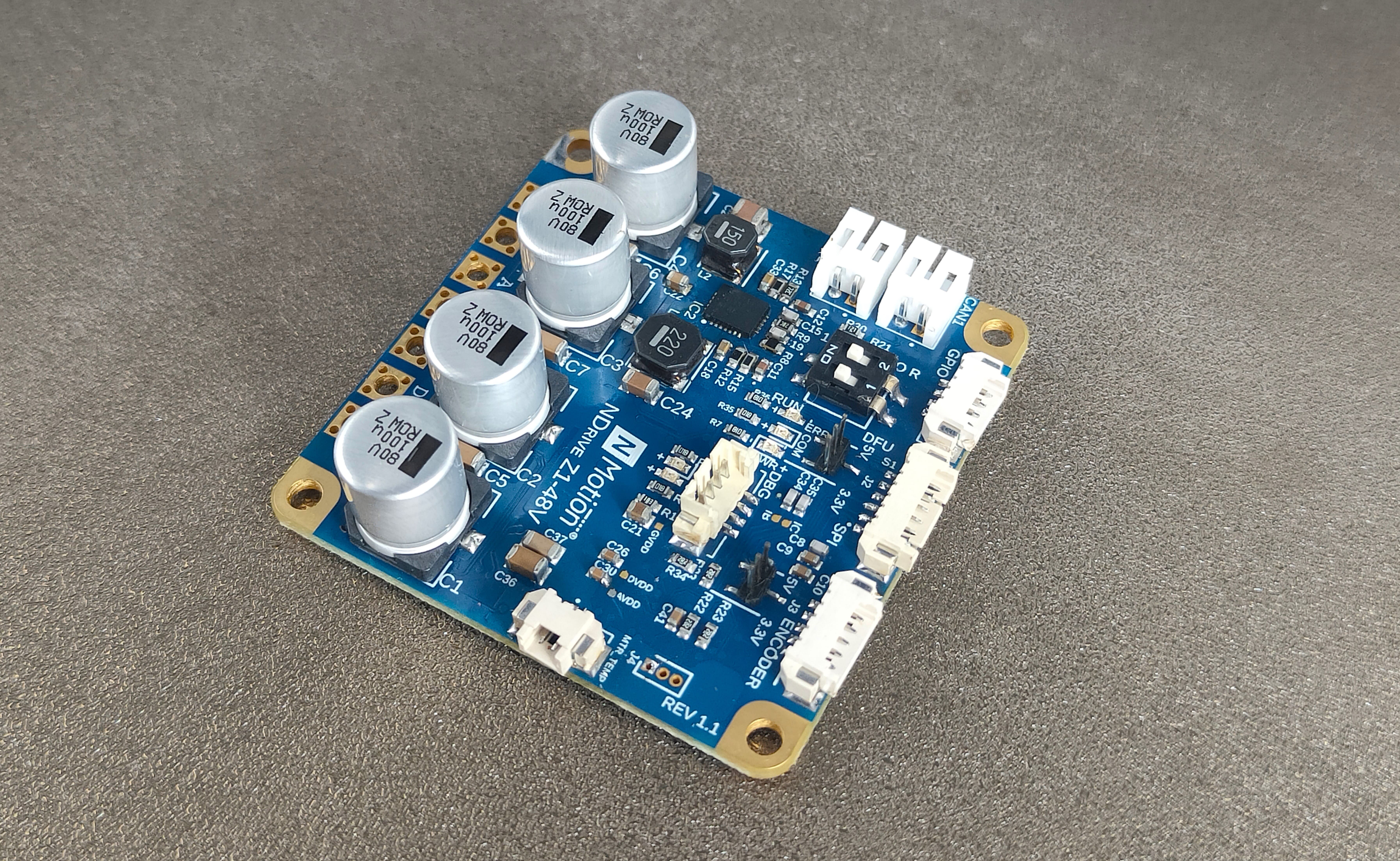

NDrive Z1
A compact and powerful brushless DC (BLDC) motor driver and controller built for high-performance motion control applications. It supports sensor-based control of BLDC motors and features an integrated CAN interface for robust and real-time communication. When paired with the NLink Adapter, the NDrive Z1 becomes plug-and-play compatible with our Software SDKs, enabling seamless configuration, monitoring, and control from your PC or embedded systems. This modular design allows users to focus on application logic without worrying about low-level motor control or communication protocols, making it ideal for robotics, automation, and research applications.
FOC Based Control
12V-48V DC
20A Continuous
Upto 55A peak
52x52 mm Compact Size
Dual Encoder Support
CAN 2.0 Bus
SDK available
