NCoder 600 Breakout Board

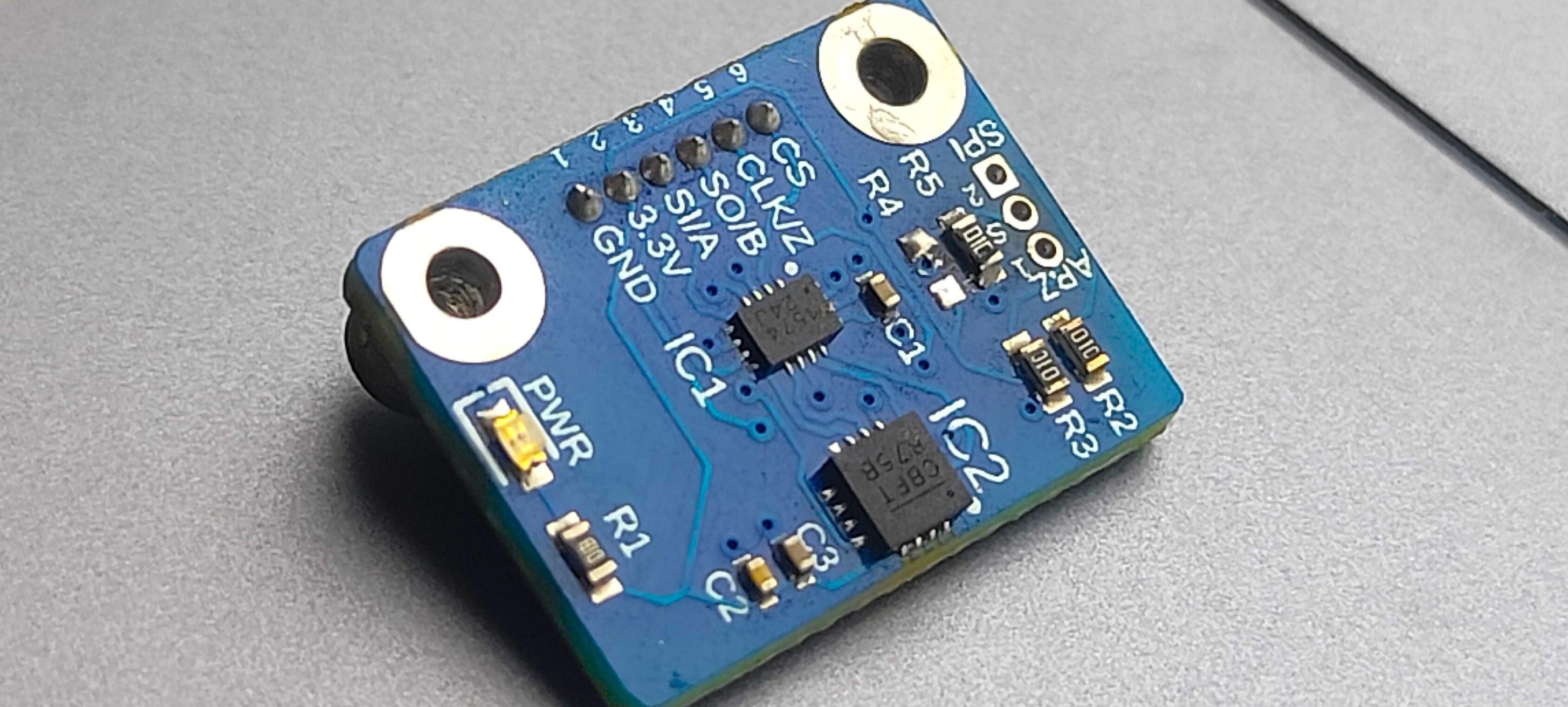

The NMotion NCoder600 is a breakout board for the MPS MagAlpha MA600 magnetic rotary encoder, offering high-resolution 360° angle sensing using a precision TMR sensor. It supports both end-of-shaft and off-axis magnet configurations, with the encoder IC positioned near the edge for flexible mounting. The board interfaces with a host microcontroller via a single connector and supports SPI communication for reading 15-bit absolute position data and configuring device settings—no external programmer required. It also provides a 12-bit incremental ABZ quadrature output with programmable resolution. Ideal for robotics, automotive, and general-purpose angle sensing applications.
