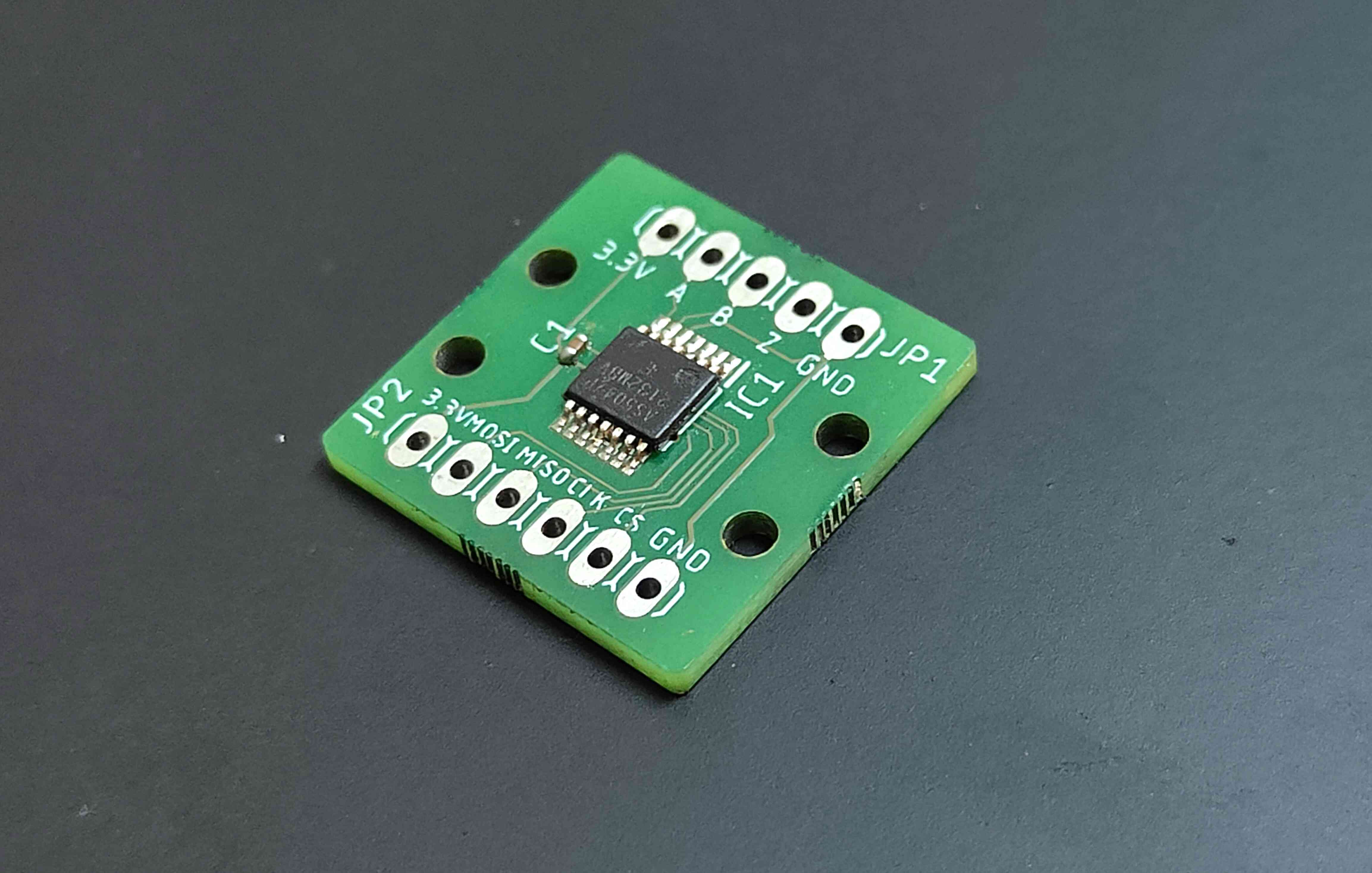

NCoder 5047 Breakout Board

The NCoder5047 is a breakout board for the AS5047P magnetic rotary encoder, designed for high-speed (up to 28,000 RPM) 360° angle measurement. The AS5047P features 14-bit absolute angle sensing with Dynamic Angle Error Compensation for near-zero latency and high immunity to external magnetic fields. It supports SPI communication for reading angle data and configuring settings without a dedicated programmer. The encoder also provides ABI quadrature outputs with programmable resolution—up to 4096 steps (1024 pulses) per revolution—and can be reduced to 100 steps (25 pulses) for lower-resolution needs. Ideal for applications requiring high-speed, high-accuracy rotary position feedback.
